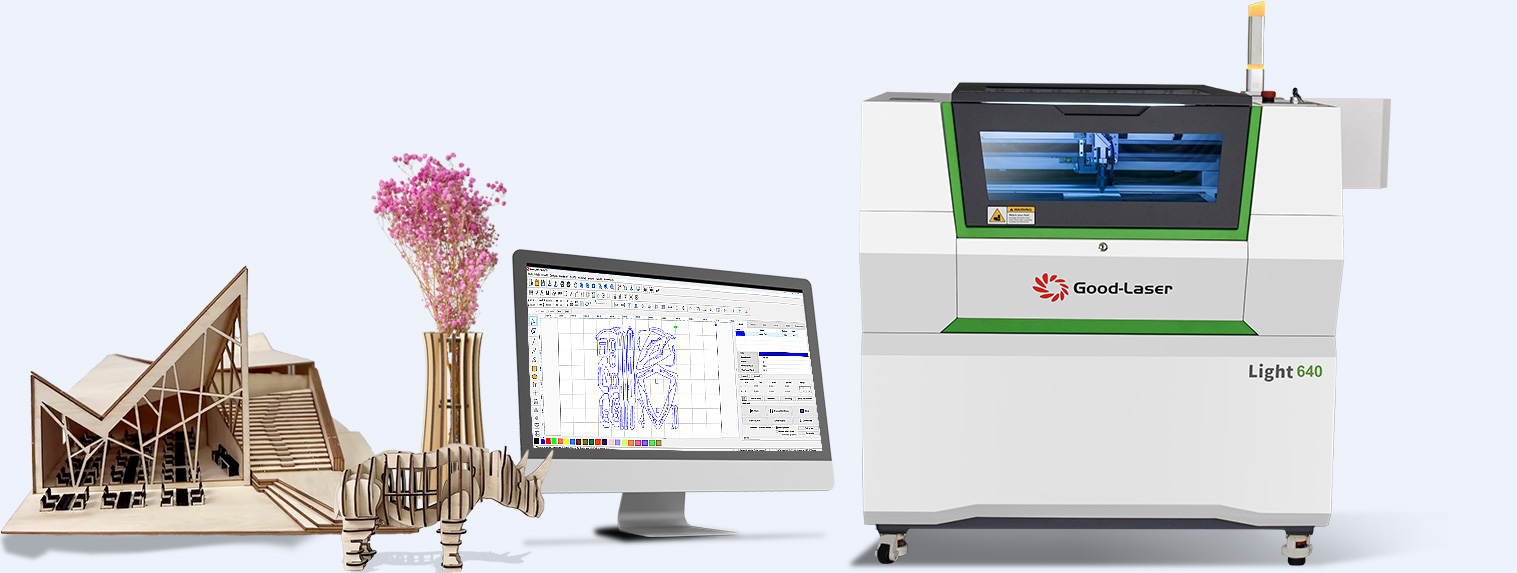

Good-Laser Light 640 series

Professional CO2 laser cutting & engraving machine

An all-rounder laser cut and engrave machine that beyond expectations
All-in-one machine to carry out all your laser creation needs
Request a Quote

Empower your laser creation more beyond

We adopted first-class components, high-quality production, and a strict inspection process that aggregated into a high-performance and stable laser machine. With precise cutting and engraving, to meet the laser creation needs of all science and innovation education applications.

And due to its powerful and stable properties, It can be used in personal home use, art creation, science and technology education, and even some industrial and commercial laser production applications.
Download catalog

Wide-range application

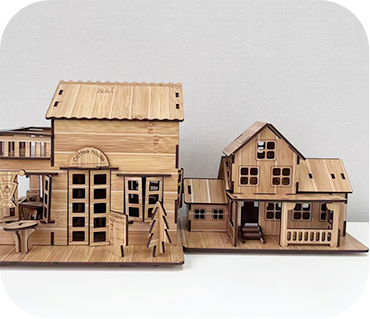

Education & Tranining
Education & Tranining

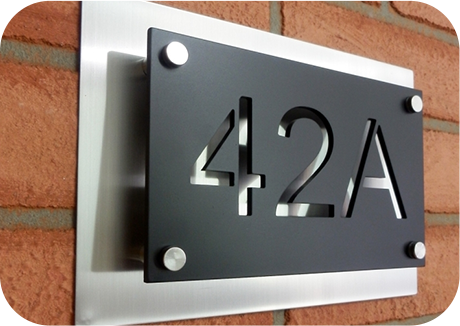

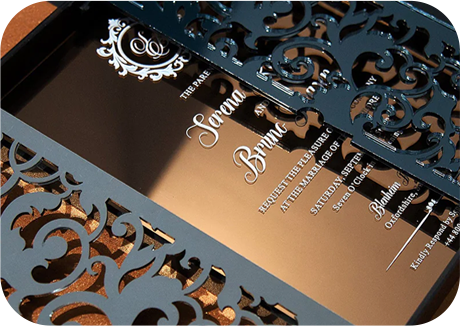

Artistic
creation
Artistic
creation
Personal
household
Personal
household

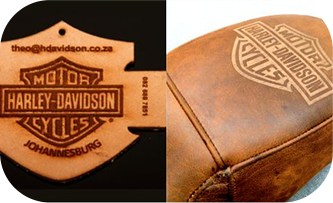

Industrial
and commercial
Industrial
and commercial

For the excellent cutting and engraving works

Different models with a variety of laser power
to meet different application requirements
Laser type:
DC CO2
Laser Power:
60W-130W

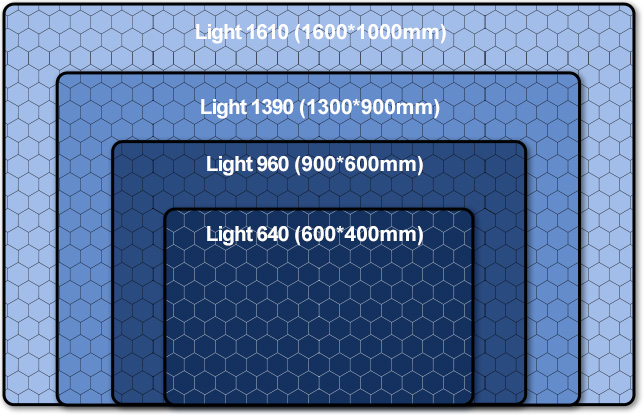

Working area:
Light 640 (600*400mm)
Light 960 (900*600mm)
Light 1390 (1300*900mm)
Light 1610 (1600*1000mm)

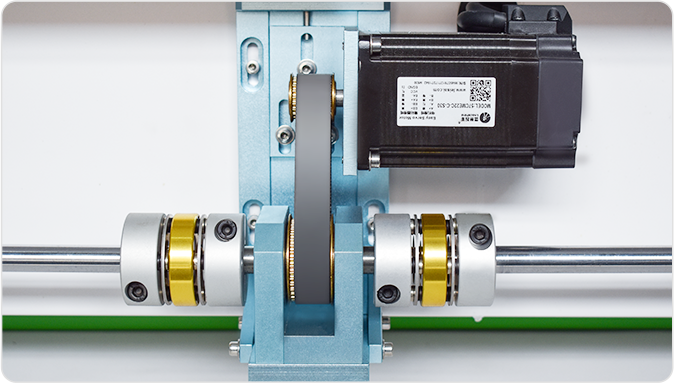

Faster and Quieter

Shock-proof and high safety thanks to the advanced high-performance hybrid servo motor. It not only supports a working speed up to 1000mm/s but also runs more stably and with lower noise.

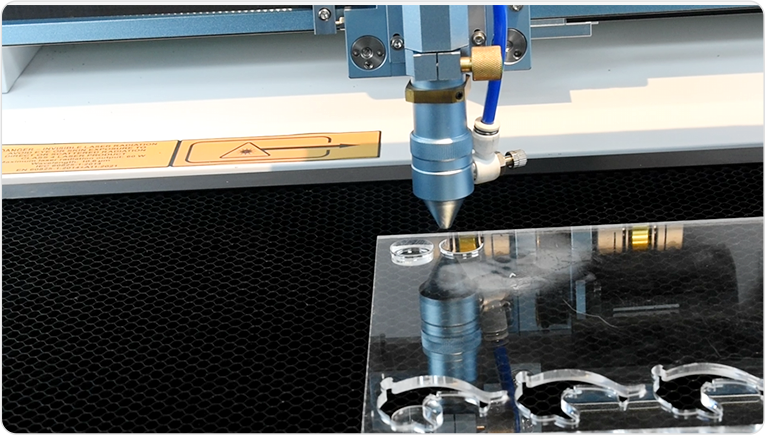

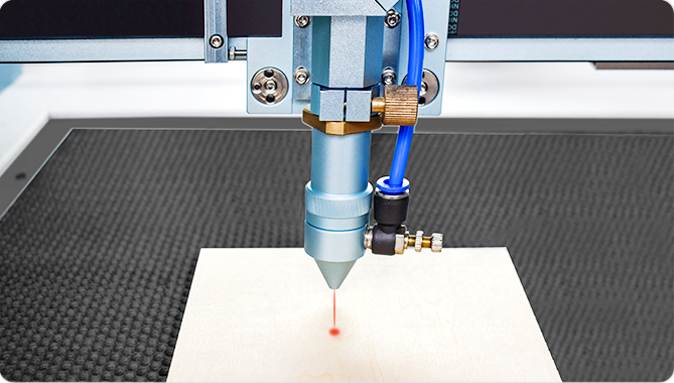

Efficient autofocus + red dot positioning

The autofocus function can quickly and accurately focus and locate before cutting and engraving. Coupled with the beam positioned by the red dot to view the working position in real-time, it saves a lot of time and brings better cutting and engraving results.

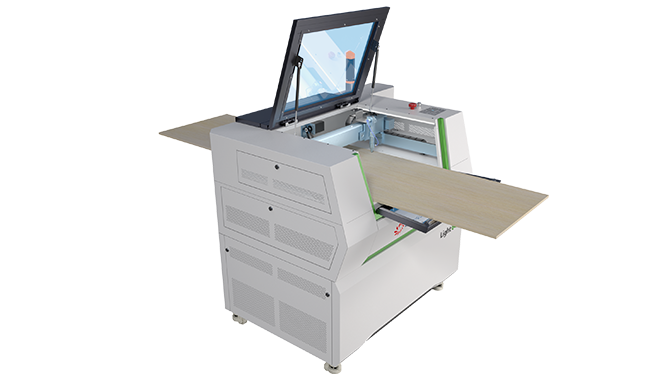

Open rear door design

The design of the open back door allows for the placement of cutting and engraving materials of no limit length, the 600mm x ∞ length sheet makes your work more convenient and less restrictive.

Multiple official powerful operation control modes & design system

It is so easy to realize your countless inspiration in both laser design system LightMaker on PC and Mobile APP as well. Combined with the 5-inch full-color high-definition touch panel on the machine.

Official operating system LightMaker on PC

Good-Laser official operating & design system, compatible with a variety of design software including AI, PS, CorelDRAW、AutoCAD、Solidworks etc...to to upload high-quality JPG, DXF, AI, DST, PNG, BMP, TIF, SVG and other files.

LightMaker APP on Mobile phone

Your mobile phone can also become a powerful laser creation tool with intelligent operation, to realize your laser creation through easy and quickly complete.

5inch touch panel operating system

The high-definition and full-color 5-inch touch screen machine operation enables simple and intuitive operation of the entire process.

Considerate & advanced safety

1.Emergency stops
2.Alarm lamps
3.Water protection switches
4.Earth wiring
5.The built-in heat detector alarm automatically switches on in the event of abnormal machine activity
6.5x open flap protection
7.The tempered glass material is durable protection window

Compatible materials

Wood
Acrylic
Delrin
Cloth
Leather
Mat Board
Melamine
Pressboard
Paper
Mylar
Twill
Cork
Glass
Coated Metals
Ceramics
Marble
Rubber
Wood Veneer
Pressboard
Fiberglass
Plastic
CorCoriank

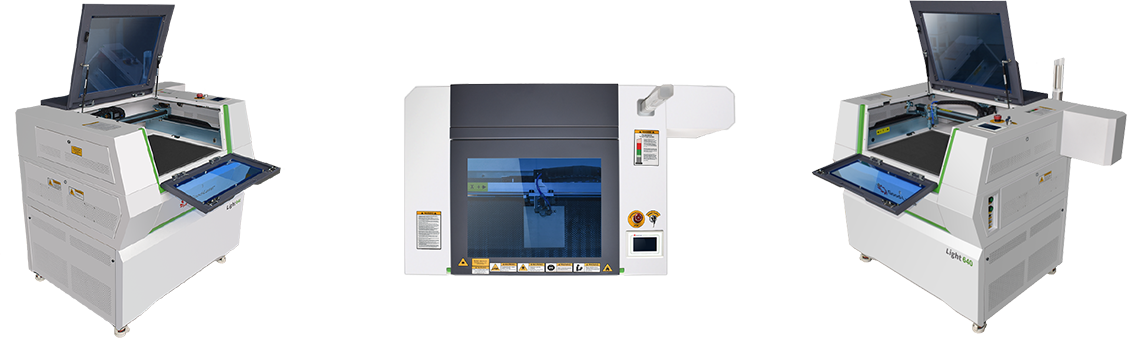

Light 640 Laser Machine Specification



 Laser SystemLight 640Light 960Light 1390Light 1610
 Laser Tube Wattage40-60W80-100W100-130W100-130W
 Work Area

600x400mm

(23.6″ x 15.7″)

900x600mm

(35.4″ x 23.6″)

1300x900mm

(51.2″x35.4″)

1600x1000mm

(63.0″x39.4″)

 Max Part Size

(WxLxH)

Front door closed

700x530x170mm

(after taking out the honeycomb bed)

(27.6″ x 20.9″ x6.7″)

1000x730x230mm

(39.4″ x 28.7″ x9.0″)

1400x1030x230m

(55.1″ x 40.6″ x9.0″)

1700x1130x230mm

(66.9″ x 44.5″ x9.0″)

Pass-through  door

700x∞x20mm

(27.6″ x ∞” x 0.8″)

1000x∞x20mm

(39.4″ x ∞” x0.8″)

1400x∞x20mm

(55.1″ x ∞” x0.8″)

1700x∞x20mm

(66.9″ x ∞” x0.8″)

   Table Size

700x530mm

(27.6″ x 20.9″)

1000x730mm

(39.4″ x 28.7″)

1400x1030mm

(55.1″ x40.6″)

1700x1130mm

(66.9″ x 44.5″)

   Z Axis Height150mm(5.9″)230mm(9.1″)230mm(9.1″)230mm(9.1″)
   Dimensions(WxDxH)

1160x900x1180mm

(42.1″ x 31.9″ x24″)

1460x1100x1180mm

(59.1″ x 43.5″ x40.9″)

1760x1300x1180mm

(74.8″ x 55.3″ x40.9″)

2060x1400x1180mm

(86.6″ x 59.3″ x40.9″)

   Net Weight130kgs(287lbs)310kgs(683lbs)430kgs(948lbs)470kgs(1036lbs)
Laser TypeSealed CO2 Glass Laser Tube
CoolingWater Cooling
Motion Control SystemHigh-Speed hibrid servo motors
Maximum Speed1000mm/s(39.4 IPS)

Speed and Power Control (engraving depth)

Computer or manually controlled speed and power from 0-100%.

Vector color mapping sets speed and power settings using RGB color mapping.

Operating ModesOptimized raster, vector, and combined mode
Resolution(DPI)User-controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
Computer interfaceEthernet and USB connection
Compatible operating systemsWindows XP/2000/Vista/7/8/10,macOS
Buffer memory128MB standard
Display panel3.5″ LCD panel showing current file, total working time, laser power, speed, etc.
Electrical requirements110 to 240 volts, 50 or 60 Hz, single phase
Ventilation SystemIntegral exhaust fan. There is 1 output port, 24/35:150mm,
51/63:200mm in diameter in the rear of the case.


Click to expand all
Click to collapse
Optional Accessories
High-speed hybrid servo motor
The closed-loop high-speed hybrid is the standard motor on the Good-laser Light 640 series laser machine device. it works with low noise and high speed, Meanwhile, it has impact protection, stable operation, and high safety. More importantly, the motor provides ultra-fast acceleration to make sure that it does not lose steps for the laser cut and engrave works.

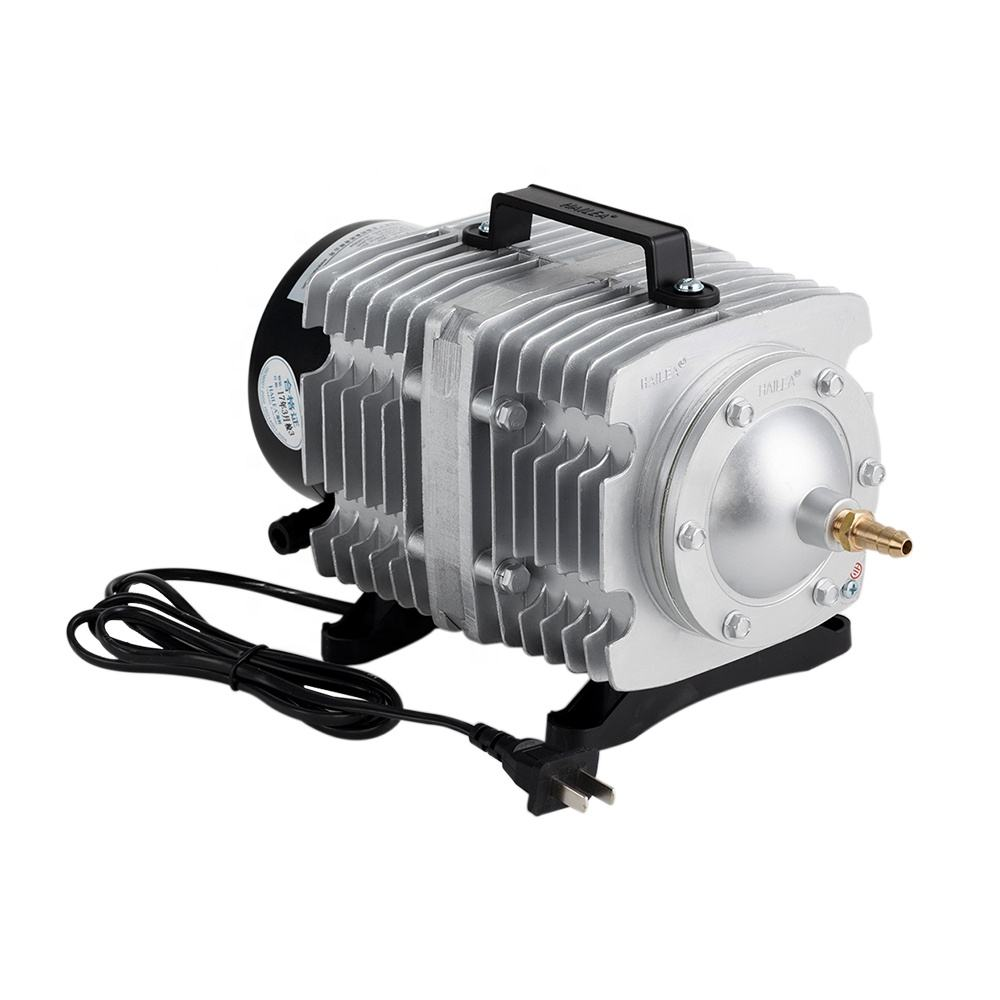

Air compressor
The Good-Laser Light 640 laser machine used in conjunction with high-pressure and low-noise air compressor includes two parts: the high-pressure and low-noise air compressor and the water separator for additional purchase.
Rotation axis
The custom-configured rotary axis was used to extend the Good-Laser Light 640 series laser machine. It can be used for cutting and engraving round items as an optional accessory.

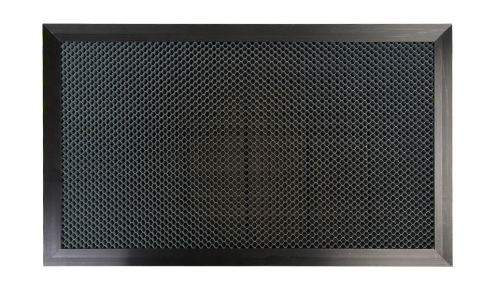

Honeycomb Table
Material: Galvanized iron
Bore Diameter: Default 7.5mm
If you need 5.5mm or 9.5mm, please leave us a message

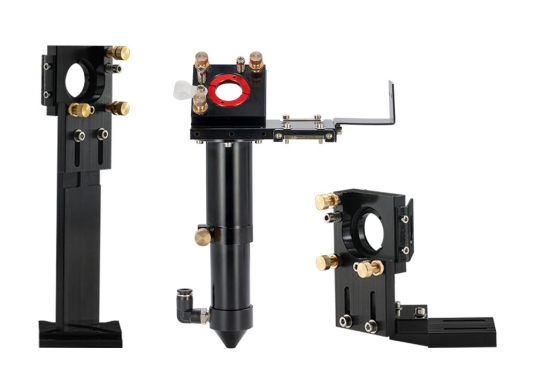

4” laser head
We have two kinds of laser heads which are 2” laser and 4” laser head, the 4” laser head provides a longer focal distance than the 2” standard laser head, for cutting thicker materials, and the cutting edges come out more smooth and straight.
1
2
3
4
5
